UC4 - Synthetic Traffic Generator

Overview

Synthetic aircraft trajectory generation addresses challenges in Air Traffic Management (ATM) including data scarcity and the need for simulation datasets. This use case demonstrates how deep learning models can generate synthetic flight trajectories that preserve spatial and temporal characteristics of real air traffic patterns, providing access to flight data for research, training, and analysis.

Synthetic trajectories support aviation research by enabling benchmark datasets for algorithm evaluation and simulation environments with diverse traffic scenarios.

Operational Context

Air traffic growth creates a need for tools to model and analyze flight operations. Data-driven ATM research requires historical flight data, but obtaining comprehensive datasets remains challenging due to accessibility restrictions and limited availability of certain flight scenarios.

The primary challenges driving synthetic trajectory generation include:

  • Data scarcity: Limited access to comprehensive historical flight data for certain scenarios or routes
  • Dataset augmentation: Need for additional flight data to augment machine learning models and conduct broader airspace analyses
  • Scenario underrepresentation: Certain operational conditions—such as specific weather patterns, emergency diversions, or rare flight scenarios—may be insufficiently represented in available datasets
  • Research accessibility: Academic and research institutions often lack access to comprehensive operational flight databases
  • Simulation requirements: Large-scale airspace studies and capacity analyses require diverse, realistic trajectory datasets

Synthetic trajectory generation addresses these challenges by producing flight data that exhibits spatiotemporal structures found in real trajectories. The approach uses deep learning to extract and reproduce flight patterns from historical data, capturing dependencies and maintaining consistency throughout flight paths.

The challenge is generating trajectories that preserve statistical characteristics of real flight data and physical constraints of aircraft operations, including speed profiles, altitude progressions, and air traffic procedures.

Dataset

Trajectory Data Sources

The trajectory datasets used in UC4 come from two sources providing flight trajectory information across European airspace:

OpenSky Network Data provides high-resolution aircraft position reports collected through ADS-B receivers, including:

  • Spatial coordinates: Latitude, longitude, altitude with high precision
  • Temporal information: Timestamps with second-level precision
  • Aircraft identifiers: ICAO24 address, callsign for flight tracking
  • High temporal resolution: Often 1-5 seconds between consecutive points, capturing flight dynamics and maneuvers
  • Coverage period: Flights from 2019 to 2023 across European airspace

EUROCONTROL R&D Archive complements OpenSky with officially recorded flight plans and actual flight data:

  • Flight identifiers and metadata: ECTRL ID, aircraft type, operator information
  • Waypoint-based trajectory information: Latitude, longitude, flight level at key points
  • Origin-destination information: ADEP and ADES airport codes
  • Broader coverage: European airspace with lower sampling rates, typically at flight plan waypoints

Dataset Types and Structure

Two distinct trajectory dataset types were created to support different aspects of synthetic traffic generation:

End-to-End Flight Trajectories: Complete paths from departure to arrival airports, capturing entire flight profiles including:

  • Climb phase: Takeoff through initial cruise altitude
  • Cruise phase: Level flight at optimal altitude
  • Descent phase: Approach and landing procedures
  • Complete spatial-temporal coverage: Flight envelope representation

Landing Trajectories: Focused on approach and landing phases, covering:

  • Final approach segments: Typically within 40-100 nautical miles of destination
  • Terminal maneuvering area operations: Including holding patterns, approach procedures
  • High-resolution terminal dynamics: Capture of flight phases

Results and Analysis

Trajectory Visualization and Comparison

Amsterdam (EHAM) to Milan (LIMC) Route

Real Trajectories EHAM-LIMC
Real Trajectories

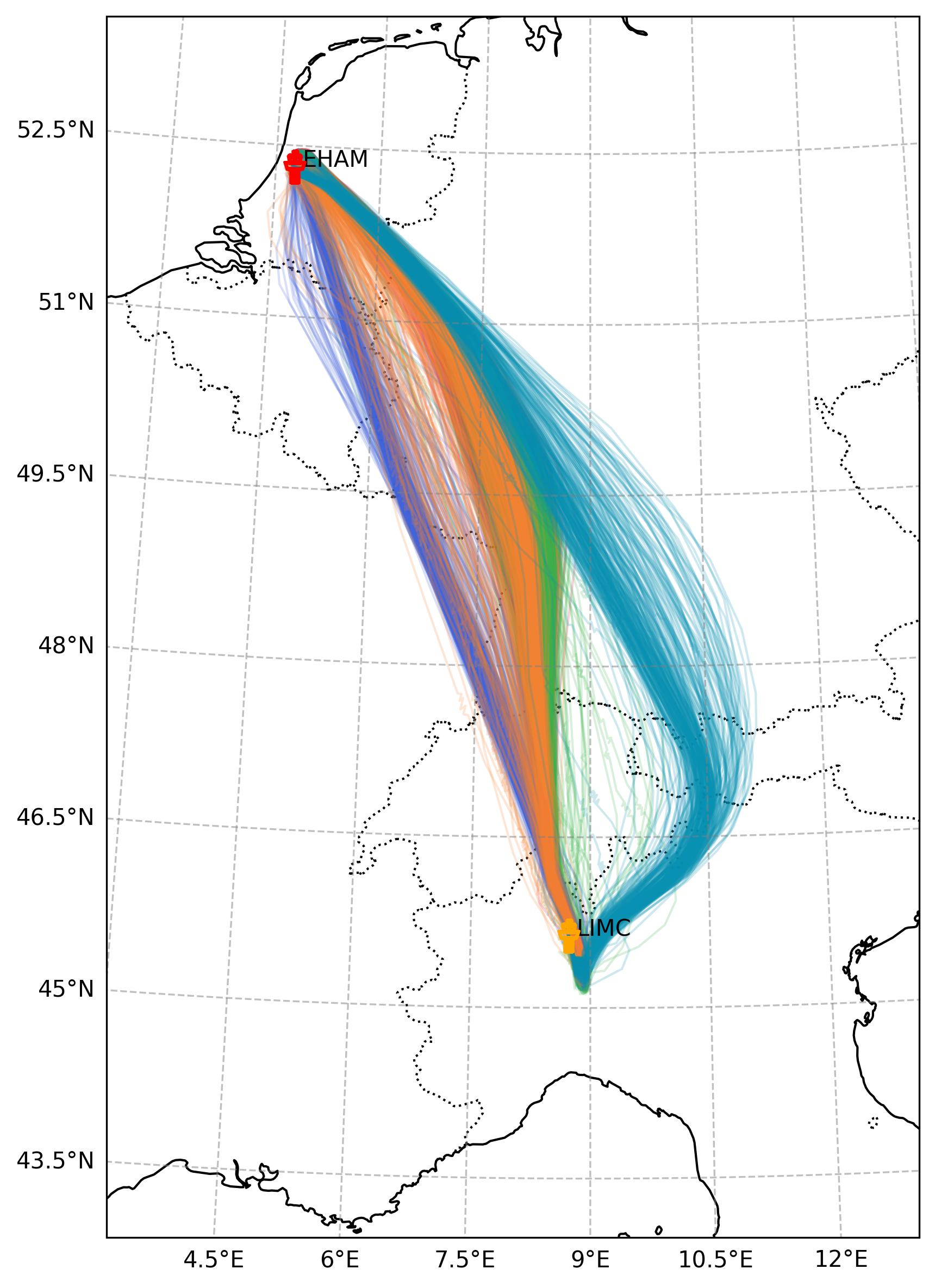

 Synthetic Trajectories EHAM-LIMC
Synthetic Trajectories

Real flight trajectories (left) showing route variations and operational diversity compared with synthetic trajectories (right) capturing primary route corridors and operational variations

Stockholm (ESSA) to Paris (LFPG) Route

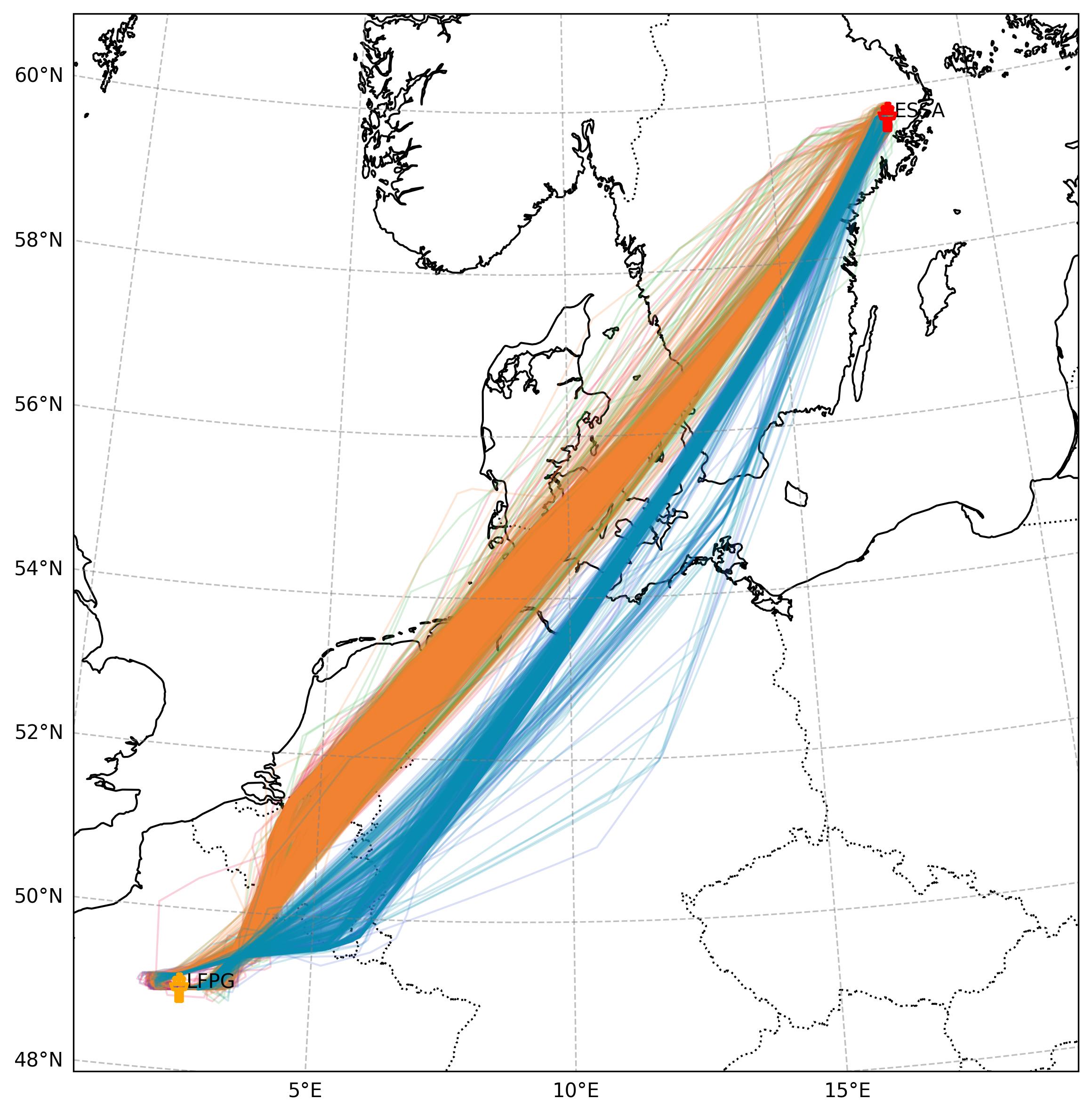

Real Trajectories ESSA-LFPG
Real Trajectories

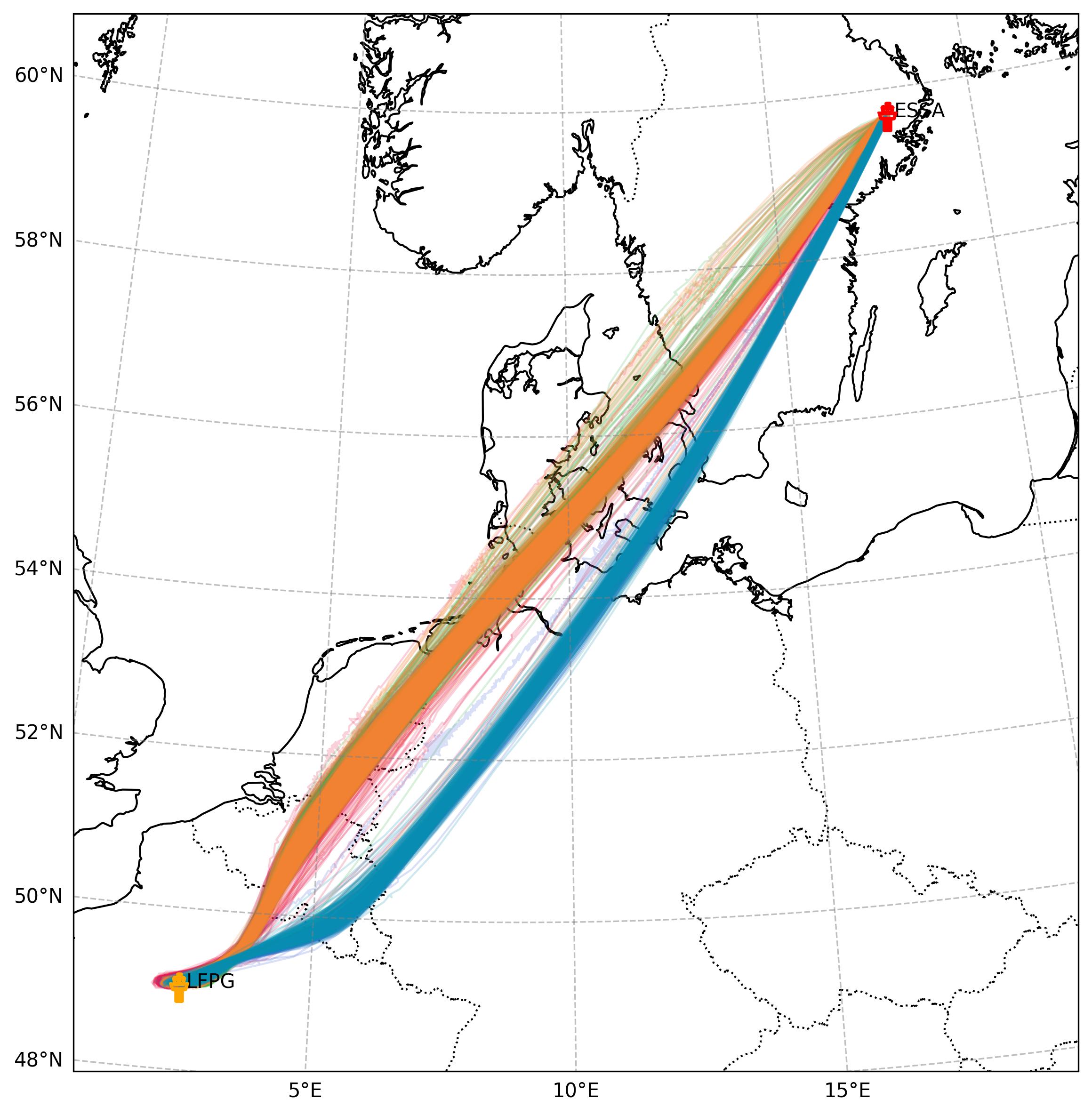

 Synthetic Trajectories ESSA-LFPG
Synthetic Trajectories

Cross-route validation showing model generalization across different European corridors

The synthetic trajectories reproduce:

  • Primary route corridors following established air traffic flows
  • Altitude profile diversity reflecting different aircraft types and operational procedures
  • Spatial variation patterns consistent with air traffic control routing practices
  • Class-conditional generation for targeted trajectory synthesis for specific operational scenarios

Trajectory Clustering and Pattern Discovery

Dublin Airport Landing Trajectories

Dublin Airport (EIDW) demonstrates embedding-based trajectory clustering methodology due to its traffic volume and diverse approach patterns. Using TCVAE embeddings, the approach can discover distinct operational patterns and identify anomalous flight behaviors.

Raw Landing Trajectories

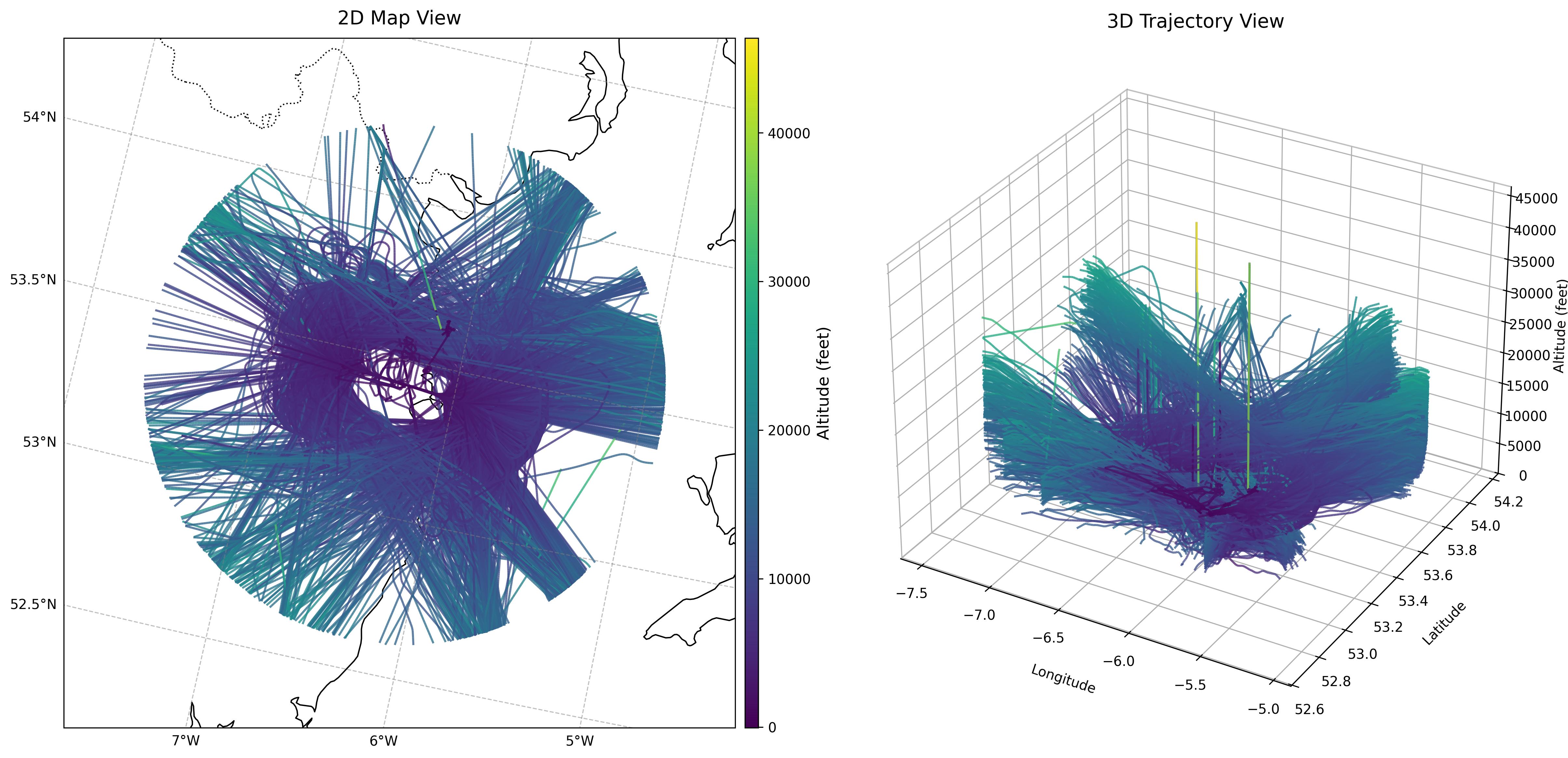

Dublin Raw Trajectories Raw flight trajectories into Dublin Airport showing natural operational diversity across multiple approach corridors

HDBSCAN Clustering Results

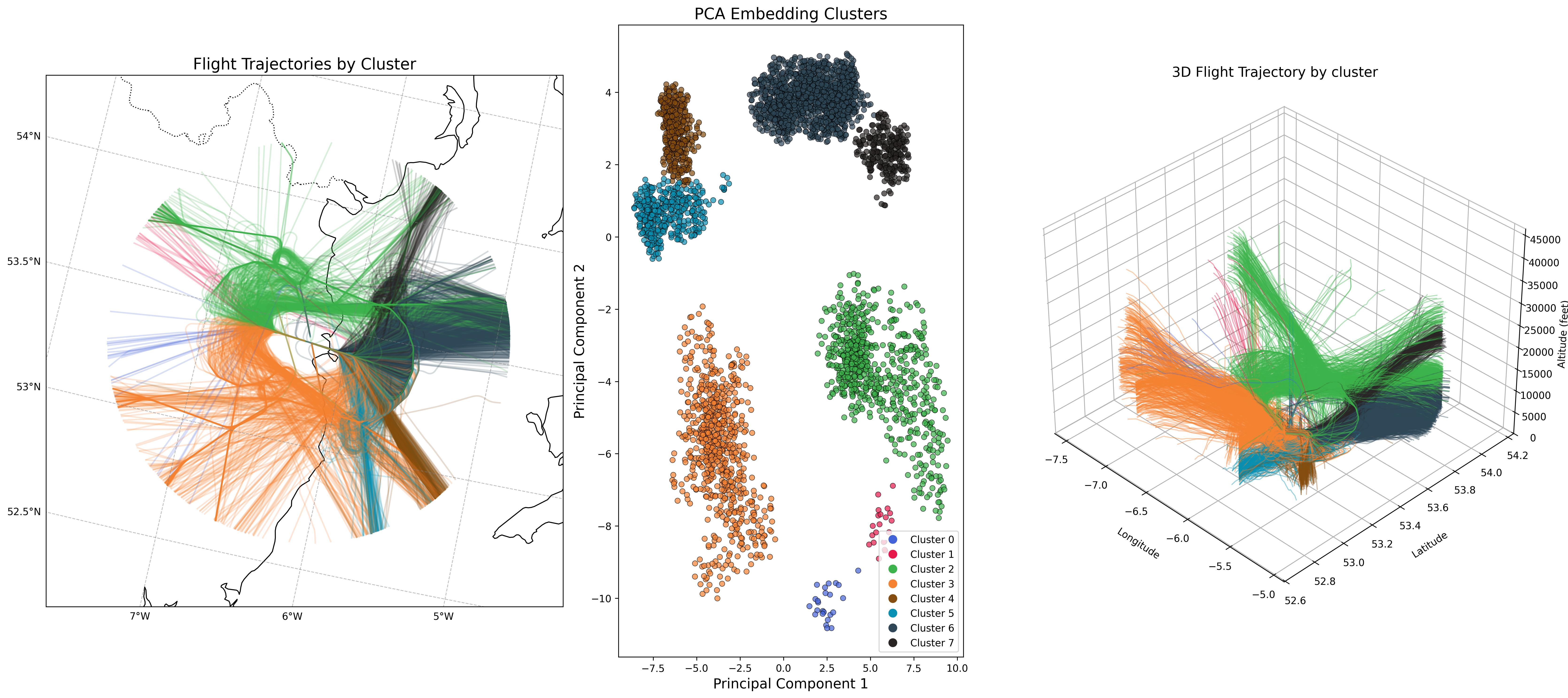

Dublin HDBSCAN Clustering Hierarchical density-based clustering showing seven distinct approach patterns corresponding to main arrival corridors at Dublin Airport

Anomaly Detection Results

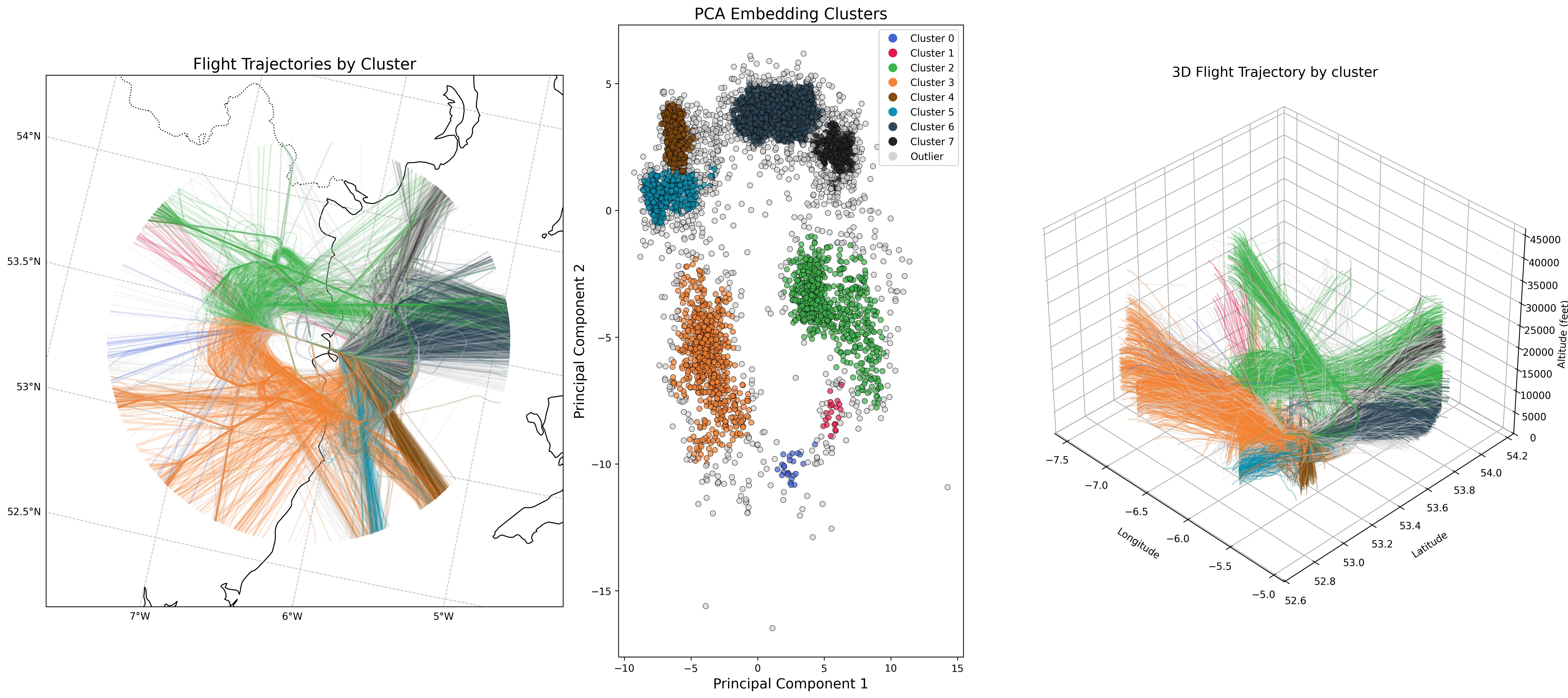

Dublin Anomaly Detection HDBSCAN’s density-based noise detection flags trajectories that deviate from common patterns, indicating potential operational anomalies (shown in grey)

Representative Trajectory Clusters

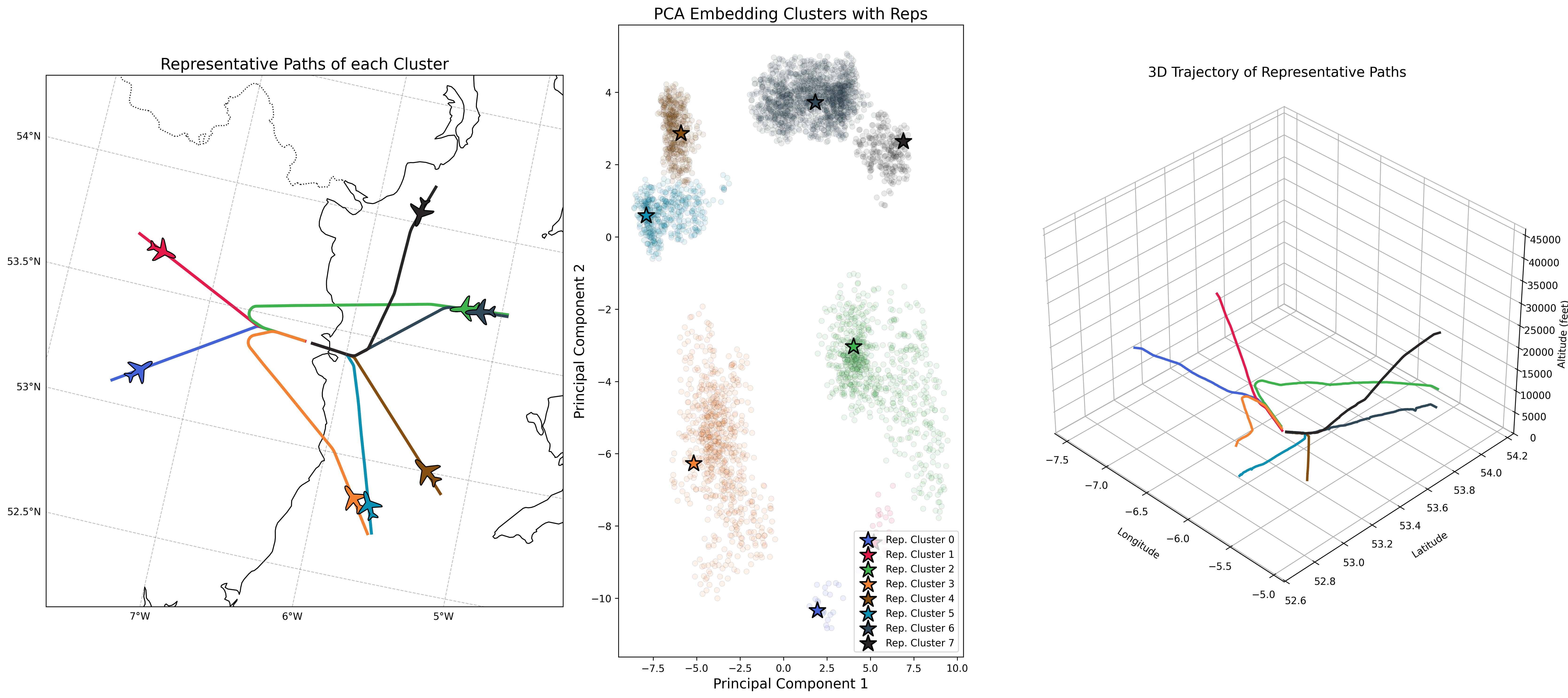

Dublin HDBSCAN with Representatives Clustering results with representative trajectories highlighting the medoid flight path for each identified approach pattern

Key Clustering Insights

The embedding-based trajectory clustering pipeline provides several advantages:

Dimensionality Reduction: Compresses multivariate trajectories into 64-dimensional vectors while preserving spatiotemporal patterns

Automated Feature Learning: Captures flight characteristics without manual engineering of trajectory features

Noise Robustness: Filters minor sampling irregularities and measurement noise that could affect traditional clustering approaches

Flexible Cluster Discovery: Identifies approach patterns and flags anomalous trajectories

Operational Pattern Recognition: Identifies approach corridors, descent procedures, and operational variations that correspond to air traffic management practices

Operational Implications

Simulation and Training Applications

The synthetic trajectories enable simulation environments for:

  • Air traffic controller training using realistic but synthetic traffic scenarios
  • Algorithm development with diverse trajectory patterns for robust testing
  • Capacity analysis through synthetic traffic generation at various density levels
  • Safety assessment using generated edge-case scenarios for evaluation

Data Augmentation for Machine Learning

Generated trajectories provide training data enhancement:

  • Rare scenario augmentation for events underrepresented in historical data
  • Class balancing for route-specific or aircraft-type-specific modeling applications
  • Robustness improvement through synthetic data variety in machine learning pipelines
  • Performance validation using synthetic test cases for comprehensive model evaluation

Conclusion

UC4 demonstrates the application of generative models for synthetic aircraft trajectory generation across European flight corridors. The results show that the model can generate trajectories that preserve key characteristics of real flight patterns while maintaining statistical consistency with the original data.

The trajectory visualizations show that synthetic data captures primary route corridors and operational variations present in real flight data. The clustering analysis reveals distinct approach patterns at Dublin Airport, with automatic identification of anomalous trajectories. Transfer learning results indicate potential for extending models to airports with limited historical data.

These capabilities support various ATM research and development activities, providing tools for data augmentation, simulation, and analysis while addressing data scarcity challenges in aviation operations research.
